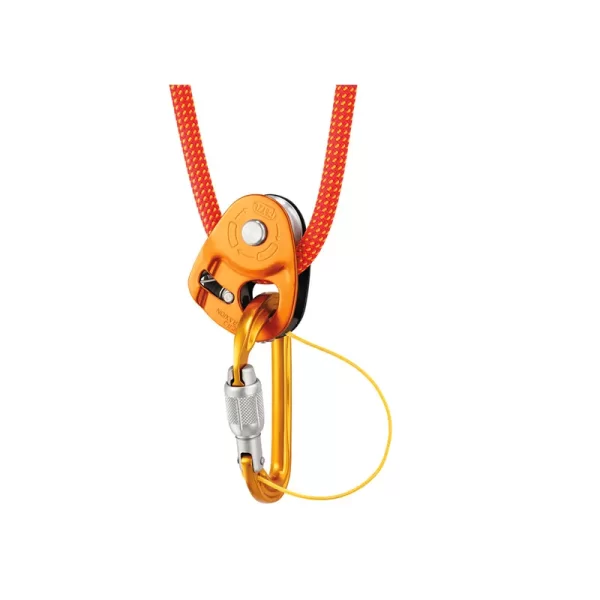

Description: MICRO TRAXION
- Versatile:
– Designed for crevasse rescue, hauling, self-rescue, and for use as an emergency ascender
– May be used as a simple pulley by locking the cam in the raised position - Very light and compact:
– Only 85 g
– Hole allows an Sm’D carabiner to be connected to the pulley with an cord, making the device loss-proof - High efficiency:
– Sealed ball bearings provide excellent efficiency (91 %)
– Works even on frozen or muddy ropes
– For use on 7 to 11 mm diameter ropes
– Rope installation diagrams are engraved inside the pulley
Specifications
- Weight: 85 g
- Certification(s): CE EN 567, UIAA
- Min. rope diameter: 8 mm
- Max. rope diameter: 11 mm
- Sheave type: sealed ball bearings
- Sheave diameter: 25 mm
- Working load: 2 x 2.5 = 5 kN
- Breaking strength: 2 x 7,5 = 15 kN
- Working load as progress capture pulley: 2.5 kN
- Breaking strength as progress capture pulley: 4 kN
- Efficiency: 91 %
References
| References | P53 |
|---|---|
| Guarantee | 3 years |
| Inner Pack Count | 1 |
